Quick Summary
Sagging gate repair costs typically range from $75 to $400 for basic adjustments, though heavy automated gates often suffer from post deflection or foundation movement that requires dedicated structural metalwork. Ironworks Gate Co. delivers transparent, upfront repair solutions – such as internal post sleeving, gusset reinforcement, and hinge welding – to restore gate alignment without pushing for costly, unnecessary replacements. Property owners will understand the exact mechanical factors driving repair pricing and can call (747) 277-8422 to schedule a free on-site assessment for same-day sagging gate solutions.
Sagging Gate Repair Cost: Estimates and Fixes
Disclaimer: This article is based on limited non-authoritative and general repair sources rather than a dedicated sagging gate cost study. No authoritative neutral-source statistics specific to sagging gate repair cost were found; available figures are limited to general fence and gate repair references.[1]

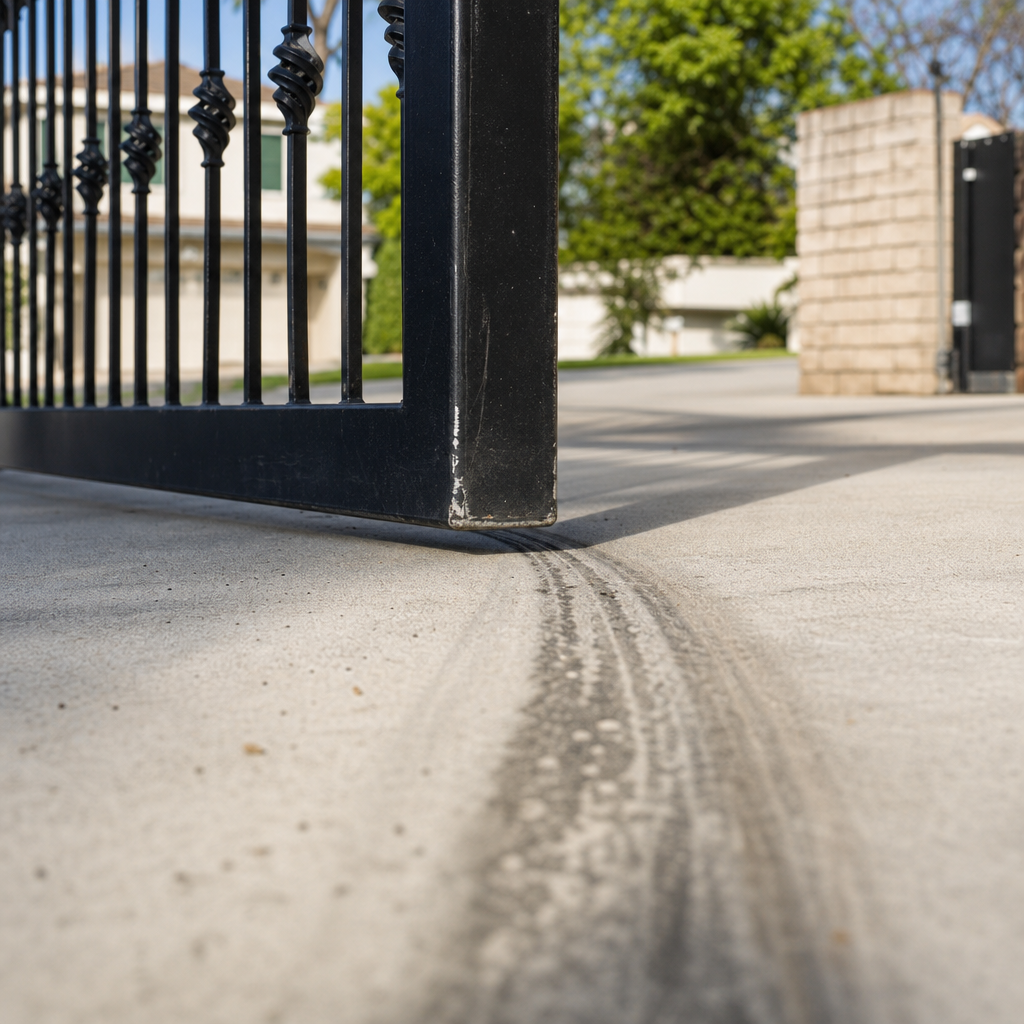

When an automatic driveway gate drags across concrete or scrapes the pavement, the repair cost depends on whether you are dealing with worn hardware or movement in the support post. General gate repair references from HomeAdvisor place standard gate repairs between $100 and $400, while commercial contractor estimates for basic realignment typically fall between $75 and $350. Turnbuckles or tension rods for lightweight fences may only cost $5 to $15 in materials, but heavy ornamental iron gates require structural metalwork and specialized alignment.
According to Ironworks Gate Co., generic repair guides often assume a sagging gate just needs a quick hinge adjustment. On heavy driveway gates, sagging is often related to post deflection or foundation movement. If left unaddressed, the added drag places mechanical strain on your gate opener, creating resistance during normal operation.
Sagging Gate Repair Cost: Price Guide and Overview
Quick Cost Overview: No authoritative neutral-source statistics specific to sagging gate repair costs are available. General gate repair references from HomeAdvisor range between $100 and $400, while non-authoritative commercial contractor estimates place basic hinge adjustments and realignment from $75 to $350. Structural post repairs, welding, or resetting footings require dedicated labor and equipment, which scales the total cost based on the weight and condition of the gate.
Hinges and posts bear substantial rotational weight every time a gate swings open. When a post leans, the gate leaf drops at the latch side. Catching this deflection early protects the physical gate frame, keeps the latch aligned, and reduces unnecessary strain on your swing arm or slide operator.
Key Repair Considerations
Labor rates, gate materials, and the extent of subsurface movement dictate your final bill. The table below outlines general repair price references:
| Service Type | Estimated Cost Range |
|---|---|
| Basic Realignment and Hinge Tuning (Commercial Contractor Estimate) | $75 – $350 |
| General Gate Repairs (HomeAdvisor Reference) | $100 – $400 |
| Tension Hardware (Materials Only) | $5 – $15 |
| Post Reinforcement and Structural Metalwork | Varies by post condition and site access |
Why Driveway Gates Start to Sag
Driveway gates drop out of alignment for several common reasons:
- Post Deflection: Ground shifting, wind load, or structural weight causes the hinge post to lean inward over time.
- Hinge Wear: Heavy gates can wear down hinge pins and internal components through repeated use.
- Footing Movement: Concrete footings can shift over time, especially in areas with ground movement or heavy rain.
- Hinge Mount Separation: Stress at the hinge attachment point can cause the gate frame to pull away from the post.
What Does Sagging Gate Repair Cost?
No authoritative neutral statistics exist specifically for sagging gate repairs. Total costs depend on whether the repair is mechanical (adjusting existing hinges and brackets) or structural (reinforcing or resetting a post). Commercial contractor estimates for basic sagging adjustments generally sit between $75 and $350, while HomeAdvisor cites general gate repairs from $100 to $400. Complex structural repairs require an on-site assessment of post stability.
Typical Repair Approaches
Not every sagging gate requires tearing out concrete. Technicians evaluate whether the post can be salvaged before recommending major reconstruction.
| Repair Approach | Application | Expected Scope |
|---|---|---|
| Tension Hardware / Turnbuckles | Lightweight wood or chain-link gates | Inexpensive cable adjustment ($5 to $15 parts plus labor) |
| Hinge Replacement / Re-welding | Worn hinge pins or broken attachment points | Attaching heavy-duty hinges directly to the post |
| Post Sleeving and Reinforcement | Leaning or deflected steel posts | Inserting an internal structural sleeve to restore vertical alignment |
| Complete Post Replacement | Deteriorated, severely bent, or broken footings | Excavating concrete, setting a new steel post, and rehanging the gate |
Cost Factors: Gate Weight and Hardware
As noted by Ironworks Gate Co., heavy ornamental iron gates exert continuous lateral pull on support posts. Inexpensive fixes like light shims or generic tension cables cannot support heavy loads. Metal gates require heavy-duty hinges and sturdy steel posts to prevent the gate from dropping again.
Fixing Sagging Hinges, Posts, and Structural Metalwork
Need sagging gate repair cost?
We’re available now - call for a fast, free estimate.
To address a sagging gate, a technician must determine whether the issue originates in the hinge assembly or below the ground line.
Post Deflection vs. Hinge Wear
When a gate drops, checking the post with a level helps isolate the issue. If the post is plumb but the gate is low, the issue is likely hinge wear or frame misalignment. If the post itself leans toward the driveway opening, the post has deflected or the concrete footing has shifted. Shimming hinges on a leaning post is often only a temporary measure.
Reinforcing Metal vs. Full Replacement
As Ironworks Gate Co. explains, replacing an entire gate system is not always necessary when a post sags. If the gate leaf itself is sound, a technician can often sleeve the existing post with structural steel, add gusset plates, or install adjustable hinges to correct the swing path without full gate replacement.
| Repair Method | Best Used For | Long-Term Result |
|---|---|---|
| Shims and Surface Adjustments | Minor clearance issues | Temporary; does not resolve structural post movement |
| Post Sleeving and Base Gussets | Deflected or leaning metal posts | Restores load capacity without replacing the entire footing |
| Full Post and Footing Dig-Out | Severe structural damage or cracked concrete bases | Permanent reset with a new concrete footing |
How a Sagging Driveway Gate Affects Openers and Tracks
A sagging gate can create added mechanical resistance for an automated entry system.
Mechanical Drag on Gate Openers
Automated swing operators are engineered to move gate weight smoothly along a level plane. When the gate sags and drags, the motor encounters increased friction. This added resistance places mechanical strain on the operator, which can lead to operational errors or cause the gate to reverse during its cycle.
Slide Gate Track Wear and Roller Misalignment
On sliding gates, frame sag can force guide rollers out of alignment. The gate may bind inside guide brackets, and bottom wheels can experience uneven friction along the track.
Automatic Gate Opener Maintenance
According to Ironworks Gate Co., aligning the gate leaf is an essential step. After the post and hinges are straight, the operator must be checked to ensure proper alignment.
Residential Swing and Slide Operators
Once the gate swings freely without dragging, limit settings should be checked along with operator mounting brackets and arms. Correcting the physical gate structure eliminates excess motor strain and helps maintain proper operator performance.
Commercial and Multi-Tenant Access Systems
For commercial properties and multi-tenant communities, an out-of-alignment gate can cause operational disruptions. Ensuring hinge posts remain properly aligned prevents unnecessary equipment strain on high-traffic entry systems.
Frequently Asked Questions About Sagging Gate Repair
How much does professional sagging gate repair cost on average?
No authoritative neutral statistics exist specifically for sagging gate repair costs. HomeAdvisor lists general gate repairs between $100 and $400, while commercial contractor estimates for sagging gate adjustments typically range from $75 to $350 depending on whether the job involves simple hinge tuning or post reinforcement.
Can a sagging gate be repaired without replacing the entire post?
Yes. If the post has minor deflection, technicians can often sleeve the post with steel tubing, add reinforcing gusset plates, or install adjustable heavy-duty hinges to bring the gate level without excavating the foundation.
Is it cheaper to repair a sagging automatic gate or replace it?
As specialists at Ironworks Gate Co. note, repairing the existing post and hinge assembly is generally much less expensive than a full gate replacement, as it restores alignment without the cost of purchasing a new gate and operator system.
What happens if I ignore a sagging gate?
A sagging gate can drag along the ground, cause uneven wear on hinges, and place unnecessary mechanical resistance on the automatic gate opener during operation.
Need sagging gate repair cost?
We’re available now - call for a fast, free estimate.
Sources
Frequently Asked Questions
How can I tell if my sagging gate is caused by worn hinges or a shifting post?
Place a level on your hinge post: if the post remains completely plumb, the sag is caused by worn hinge pins, broken welds, or frame distortion. If the post leans toward the driveway opening, ground movement or post deflection has occurred, which Ironworks Gate Co. can diagnose during an on-site structural assessment.
What is post sleeving and how does it save on repair costs?
Post sleeving involves inserting an internal structural steel sleeve into a deflected post to restore vertical strength without jackhammering the existing concrete footing. Ironworks Gate Co. utilizes this specialized reinforcement technique to realign heavy gates while eliminating the extensive labor and expense of full post replacement.
Can continuing to operate a sagging driveway gate ruin the automatic motor?
Yes, operating a sagging gate forces the motor to fight severe mechanical resistance and friction, which can overheat electrical components, strip internal drive gears, and cause premature opener failure. Ironworks Gate Co. provides prompt realignment and hinge reinforcement to protect your automated swing or slide operator from costly damage.
